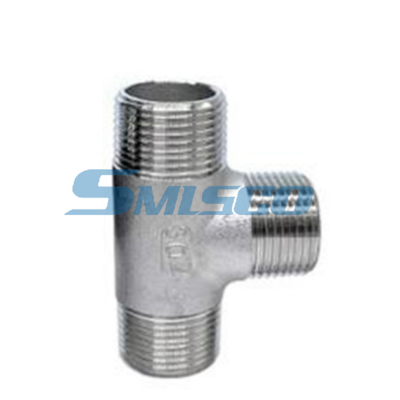

316 Casting Fitting Equal Tee ASTM A351 CF8M DN50 For Plumbing
| MOQ: | 1pc |
| Price: | Above 2usd/kg |
| Standard Packaging: | Plywood case |
| Delivery Period: | 3 weeks/container |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100 ton/month |
Detail Information
Brand Name
SMLSCO
Certification
ISO PED
Material:
316
Certificates:
ISO,PED
Brand:
SMLSCO
Price Term:
FOB/CFR/CIF，etc
Payment:
T/T, L/C Or As Negotiation
Package:
Wooden Box
Highlight:
DN50 Equal Tee
,316 Casting Fitting
,ASTM A351 CF8M Equal Tee
Product Description
316 Casting Fitting Equal Tee ASTM A351 CF8M DN50 for Plumbing
| Attribute | Value |
|---|---|
| Material | 316 |
| Certificates | ISO, PED |
| Brand | SMLSCO |
| Price Term | FOB/CFR/CIF, etc |
| Payment | T/T, L/C or as negotiation |
| Package | Wooden Box |
Product Specifications
- Product Name: Threaded Equal Tee
- Material: Stainless Steel 316 / Casting Grade CF8M
- Standard: ASTM A351 (Material) / ISO 4144 (Dimensions, ref.)
- Fitting Type: Equal Tee, Casting
- Connection: Threaded NPT
- Pressure Rating: Class 150
- Application: Plumbing, Water Distribution, Low-Pressure Systems
- Size: DN50 (2 inch)
About Casting Fittings
SMLSCO stainless steel fittings are produced using precision casting (silica sol) technology. This process can produce products with complex shapes, precise dimensions, and high surface smoothness. Compared to other processes, precision casting is an ideal choice for producing medium and low pressure threaded pipe fittings such as Class 150, with excellent product performance and cost-effectiveness. It is widely used in general industrial, building, and civil pipeline systems.
Types of Cast Tee
Casting tees is the basic component for creating a 90° branch on the main pipeline. SMLSCO offers two main types: Equal Tee, with three identical port sizes for evenly distributing flow; And reducing tee, whose branch pipe port size is smaller than the main pipe port, is used to connect smaller equipment or branch pipelines. These two types jointly meet the diverse branch connection requirements in pipeline systems.
Material Properties of CF8M/316
CF8M (commonly known as cast 316) material has significantly better corrosion resistance than conventional CF8/304 material due to the presence of molybdenum (Mo) element, especially its ability to resist chloride pitting and crevice corrosion. This makes it a more durable and reliable choice, especially suitable for plumbing systems that may handle chemically treated water, brackish water, or other corrosive factors, effectively extending the service life of fittings.
Material and Standard Description
According to ASTM A351 standard, the official grade for casting 316 stainless steel is CF8M. Although the chemical composition of the two is very similar, the industry usually uses the more well-known "316" for labeling and communication. The cast pipe fittings supplied by SMLSCO have material properties that meet the requirements of CF8M, ensuring that you achieve the expected corrosion resistance. At the same time, the product dimensions refer to standards such as ISO 4144 and comply with widely accepted industry standards.
Applications
Class 150 cast equal diameter tees are widely used in commercial and industrial plumbing and piping systems. They are an ideal choice for building water distribution networks, fire sprinkler systems, HVAC piping, and other low-pressure fluid delivery systems. DN50 (2 inches), as a commonly used size in these systems, provides a convenient and cost-effective solution for creating branches of main and branch pipelines.
