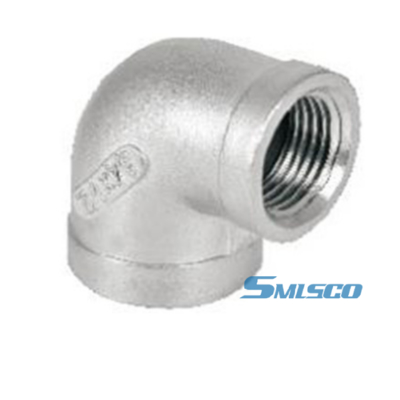

Casting 90 Degree Elbow 1" 304 Stainless Steel NPT Class 150
| MOQ: | 1pc |
| Price: | Above 2usd/kg |
| Standard Packaging: | Plywood case |
| Delivery Period: | 3 weeks/container |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100 ton/month |
Casting 90D Elbow
,304 90D Elbow
,Threaded NPT Fitting
| Attribute | Value |
|---|---|
| Product Name | Class 150 elbow |
| Material | 304 Stainless Steel (Casting Grade CF8) |
| Brand | SMLSCO |
| Connection | Threaded NPT |
| Pressure Rating | Class 150 |
| Standard | ASTM A351 (Material) / ISO 4144 (Dimensions) |
| Size | 1 inch (DN25) |
| Application | General Plumbing, Low-Pressure Piping, HVAC |
This 304 stainless steel casting 90° elbow features threaded NPT connections for medium and low-pressure systems. The Class 150 pressure rating makes it ideal for water, air, oil, gas, and drainage applications in industrial and commercial settings.
- Material: 304 Stainless Steel (CF8 casting grade) with excellent corrosion resistance
- Threaded NPT connection for easy installation without welding
- Class 150 pressure rating suitable for low-pressure applications
- Standard dimensions per ISO 4144
- Certifications: ISO, PED compliant
- Available in various packaging options including wooden boxes
The NPT (National Pipe Thread) connection features a 60° thread angle with taper, creating a mechanical seal when tightened. This design allows for quick installation and maintenance in general industrial and civil pipelines.
Class 150 (150#) rating provides safe and reliable performance for non-critical pipelines in water, air, oil, gas, and drainage systems where working pressure is typically medium to low.
304 stainless steel (CF8) offers excellent corrosion resistance in water, air, and weakly corrosive media. Its mechanical properties and processability make it ideal for cost-effective low-pressure pipe fittings in plumbing and general chemical applications.
| DN | Size | Thread | D | d | L | J | T | H | KG |
|---|---|---|---|---|---|---|---|---|---|
| DN8 | 1/4" | BSPT | 17 | 11.3 | 19.2 | 6 | 1.85 | 11 | 0.023 |
| DN10 | 3/8" | BSPT | 22 | 14.5 | 21.5 | 6 | 1.75 | 12 | 0.033 |
| DN15 | 1/2" | BSPT | 26 | 18.5 | 25.8 | 7 | 2.5 | 14 | 0.063 |
| DN20 | 3/4" | BSPT | 32 | 26.5 | 30.5 | 7 | 1.5 | 13 | 0.086 |
| DN25 | 1" | BSPT | 39 | 33.5 | 35.5 | 8 | 1.5 | 13 | 0.129 |
| DN32 | 1-1/4" | BSPT | 48.5 | 42 | 41 | 9 | 2 | 15 | 0.216 |
| DN40 | 1-1/2" | BSPT | 55 | 48.5 | 46 | 9 | 2 | 16 | 0.285 |
| DN50 | 2" | BSPT | 66.5 | 59.5 | 58.25 | 13.5 | 2.25 | 23 | 0.514 |
| DN65 | 2-1/2" | BSPT | 84.5 | 76.5 | 66.5 | 12 | 2.5 | 20.5 | 0.79 |
| DN80 | 3" | BSPT | 97 | 88 | 77 | 14.5 | 3 | 23 | 1.134 |
| DN100 | 4" | BSPT | 124 | 114.5 | 91 | 16 | 2.5 | 26.5 | 1.874 |
