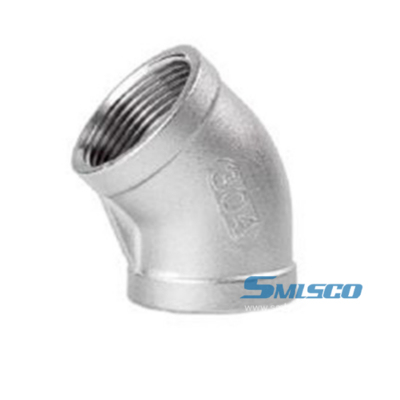

304 Stainless Steel 45 Degree Elbow 3/4" NPT Class 150
| MOQ: | 1pc |
| Price: | Above 2usd/kg |
| Standard Packaging: | Plywood case |
| Delivery Period: | 3 weeks/container |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100 ton/month |
45 Degree Elbow 3/4"
,45 Degree Elbow Fitting
,304 Threaded NPT
| Attribute | Value |
|---|---|
| Product Name | Stainless steel 45 degree elbow |
| Material | Casting Grade CF8 (304 Stainless Steel) |
| Brand | SMLSCO |
| Fitting Type | 45° Elbow, Casting |
| Connection | Threaded NPT |
| Pressure Rating | Class 150 |
| Size | 3/4 inch (DN20) |
| Application | General Plumbing, Low-Pressure Piping, HVAC |
| Package | Plywood case/pallet |
- 45° angle design for smooth pipeline turns with reduced fluid resistance
- NPT threaded connection for easy installation without welding
- ASTM A351 material standard / ISO 4144 dimensional reference
- 304 stainless steel (CF8 cast) offers excellent corrosion resistance
- Cost-effective solution for low-pressure piping systems
304 stainless steel (cast as CF8) provides reliable corrosion resistance in water, air, and weakly corrosive media. Its mechanical properties and ease of processing make it ideal for low-pressure pipe fittings in water supply, drainage, and general chemical applications.
This Class 150 cast 45° elbow is designed for low-pressure piping systems in building water supply, drainage, HVAC, and general industrial fluid transport. The threaded connection offers flexibility in pipeline layout while maintaining cost-effectiveness.

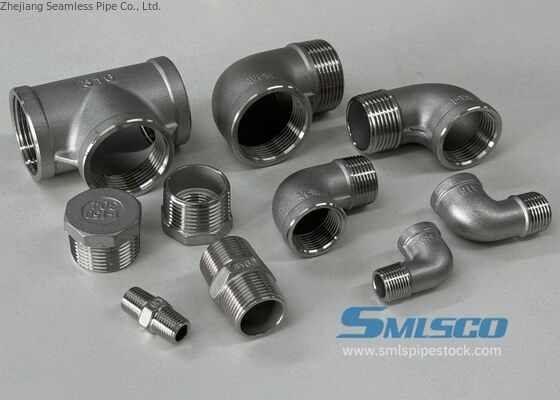

SMLSCO offers a complete range of cast elbows including 90° elbows for standard right-angle turns and Street Elbows with internal/external threads for space-saving installations.
Q1: What is the difference between 304 stainless steel and the cast grade CF8?
A1: CF8 is the corresponding grade of 304 stainless steel in the casting standard ASTM A351. Their chemical composition and corrosion resistance are basically the same; CF8 is the equivalent cast grade of 304.
Q2: Can NPT threaded 45-degree elbows be used interchangeably with BSP threaded elbows?
A2: NPT (American Standard) and BSP (British Standard) thread angles and pitches are different. Forcibly mixing them will lead to seal failure and leakage. Please ensure your system uses the NPT standard.
Q3: What is the specific working pressure of a Class 150 elbow?
A3: Class 150 is a pressure rating, not 150 psi. According to the standard, the maximum working pressure of a Class 150 fitting made of 304 stainless steel at room temperature is approximately 19 bar (approximately 275 psi).
