904L Stainless Steel Flange ASTM A182 Raised Face PED Certified
| MOQ: | 1pc |
| Price: | Above 2usd/kg |
| Standard Packaging: | Plywood case/pallet |
| Delivery Period: | 3 weeks/container |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 100 ton/month |

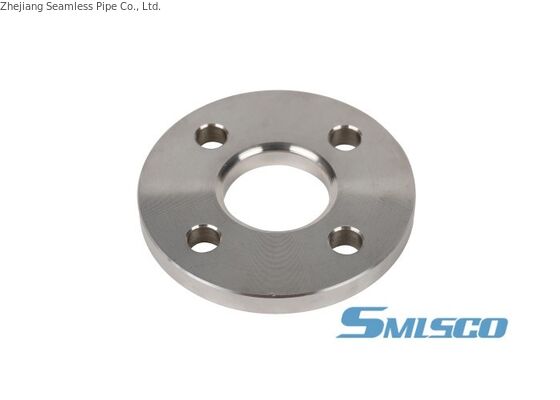

904L stainless steel flange
,ASTM A182 raised face flange
,PED certified stainless steel flange
High-performance 904L stainless steel forged flange designed for industrial piping systems requiring superior corrosion resistance. Manufactured in compliance with ASTM A182 standards with PED certification available.
Since 2006, SMLSCO has specialized in supplying stainless steel piping systems to global stockists and industrial distributors. Our capabilities include:
- 10,000 m² indoor warehouse facility
- 500 tons of forged blank inventory for reduced lead times
- Complete machining, inspection, packaging, and documentation services
- Support for improved inventory turnover efficiency
- Superior Corrosion Resistance: 904L austenitic stainless steel with high nickel, chromium, and molybdenum content
- Certification Compliance: PED, ISO, and NORSOK M-650 certification available
- Production Efficiency: Forged blank inventory enables faster production of standard specifications
- Quality Traceability: Comprehensive inspection records and documentation support
- Raw Material Control: Verification of material grades and quality documentation
- In-Process Inspection: Monitoring of forging and machining processes
- Final Pre-Shipment Inspection: Comprehensive testing including dimensions, appearance, PMI, mechanical properties, and NDT
| Attribute | Value |
|---|---|
| Product Name | 904L Stainless Steel Forged Flange |
| Product Type | Forged Flange |
| Material Grade | ASTM A182 F904L |
| Standard | ASTM A182 / ASME B16.5 |
| Flange Type | WN / SO / BL / PL / LJ / TH / SW |
| Facing Type | RF / FF / RTJ / TG / MFM / LJ |
| Size Range | OD ≤ 80" |
| Pressure Class | Class 150-2500 / PN Series |
| Inspection | Dimensional, Surface, PMI, Mechanical Properties, Penetrant Test |
| Certification | PED / ISO / NORSOK M-650 |
SMLSCO forged flange products can be supplied in compliance with certification systems such as PED, ISO, and NORSOK M-650.
Flange sealing surfaces are fitted with protective covers. For European markets, Euro-standard plywood crates with EPAL bases are used; for other markets, plywood crates with protective covers and bubble wrap minimize transit damage risk.
The product complies with ASTM A182 material standard, with dimensions meeting ASME B16.5 and ASME B16.47 standards. Specific applicable standards are confirmed based on customer procurement specifications.
