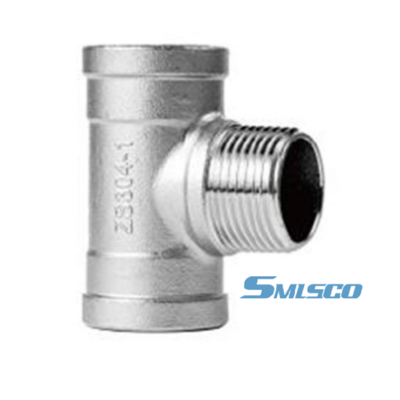

304 Stainless Steel Casting Tee Threaded NPT Class 150 Fitting
| MOQ: | 1pc |
| Price: | Above 2usd/kg |
| Standard Packaging: | Plywood case |
| Delivery Period: | 3 weeks/container |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100 ton/month |
304 Stainless Steel Tee
,Stainless Steel Tee 2"
,Threaded NPT Fitting
| Attribute | Value |
|---|---|
| Material | 304 Stainless Steel (CF8) |
| Standard | ASTM A351 (Material) / ISO 4144 (Dimensions) |
| Fitting Type | Equal Tee, Casting |
| Connection | Threaded NPT |
| Pressure Rating | Class 150 |
| Size | 2 inch (DN50) |
| Application | Low-Pressure Piping, HVAC, Plumbing |
The 304 Stainless Steel Casting Tee is a T-shaped fitting with three ports used to create 90° branches in pipeline systems. This equal tee features identical port sizes for uniform flow distribution and comes with convenient NPT threaded connections for easy installation.
- Manufactured from corrosion-resistant 304 stainless steel (CF8 casting grade)
- Designed for Class 150 pressure applications
- Threaded NPT connections for medium and low-pressure systems
- Standard dimensions per ISO 4144
- Ideal for water, air, and weakly corrosive media
304 stainless steel (cast as CF8) offers:
- Excellent corrosion resistance in water, air, and mild chemical environments
- Superior rust prevention for maintaining fluid purity
- Strong mechanical properties with good machinability
- Cost-effective solution for industrial applications
- Threaded (NPT): Ideal for medium/low pressure systems with easy installation
- Socket Welding: Recommended for high-pressure, small-diameter applications
- Butt Welding: Provides highest strength for continuous pipeline systems
- Commercial water supply and drainage systems
- Fire protection sprinkler installations
- HVAC water distribution networks
- General industrial utility pipelines
- Low-pressure chemical processing systems
FAQ
Q1: What is the difference between this Casting tee and the Forged tee?
A1: Casting tees (ASTM A351 CF8) are primarily used for low-pressure, medium-temperature piping systems of Class 150 and below, offering high cost-effectiveness. Forged tees (ASTM A182) are used for high-pressure environments (such as Class 3000). This NPT tee is specifically designed for low-pressure piping such as water and gas.
Q2: What does the pressure rating "Class 150" specifically mean?
A2: Class 150 is a low-pressure rating. For 304 stainless steel, its maximum permissible working pressure at room temperature is typically around 150 PSI (approximately 10 Bar). It is not suitable for high-pressure or high-temperature steam applications.
Q3: Is sealing material required when installing an NPT threaded tee?
A3: Yes. NPT (American Standard Tapered Pipe Thread) relies on the "wedging" between the threads and a sealant to prevent leaks. During installation, appropriate thread sealing tape (such as PTFE) or pipe thread sealant must be used, and care must be taken not to overtighten to avoid damaging the fittings.
